Description

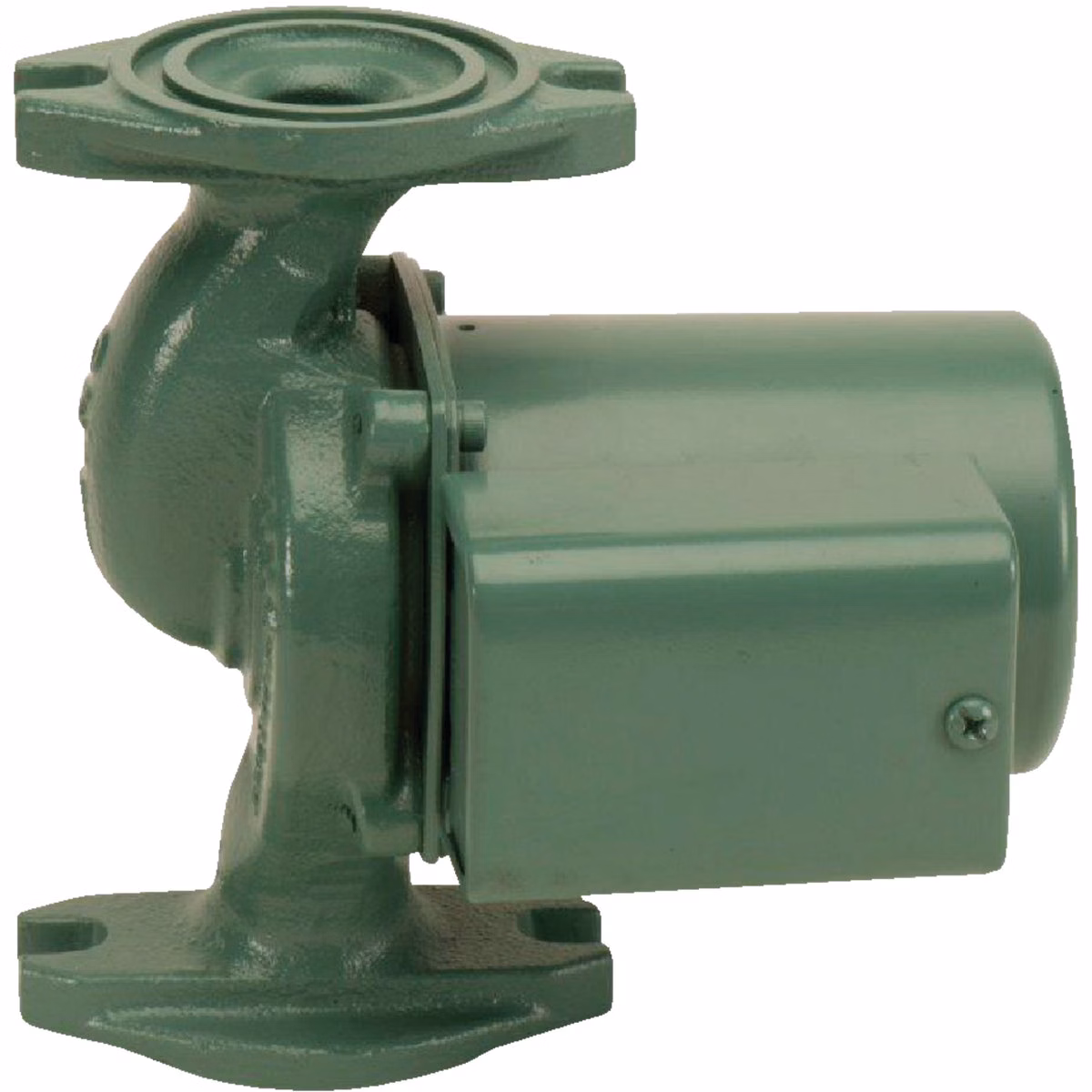

Cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. Designed for quiet operation in hydronic heating, radiant heating, Hydro-Air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems. Other features include universal flange to flange dimensions, no mechanical seal, self-lubricating, and direct drive-low power consumption. Replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Replacement cartridge available.
| Material | Cast Iron |
| Voltage | 115 |
| Amperage | .71 |
| Flow Rate | 0-23 GPM |
| Connection Size | 3/4., 1, 1-1/4, 1-1/2 Flanged |
| Phase | Single |
| Horsepower | 1/25 HP |
| Frequency | 60 Hz |
| RPM | 3250 rpm |
| Head Range | 0-10 Ft. |
| Fluid Temperature | 40 F/240 F |
| Max Working Pressure | 125 psi |
| Brand | TACO |
| UPC | 00662766542912 |
| Product type | Circulator |
