Description

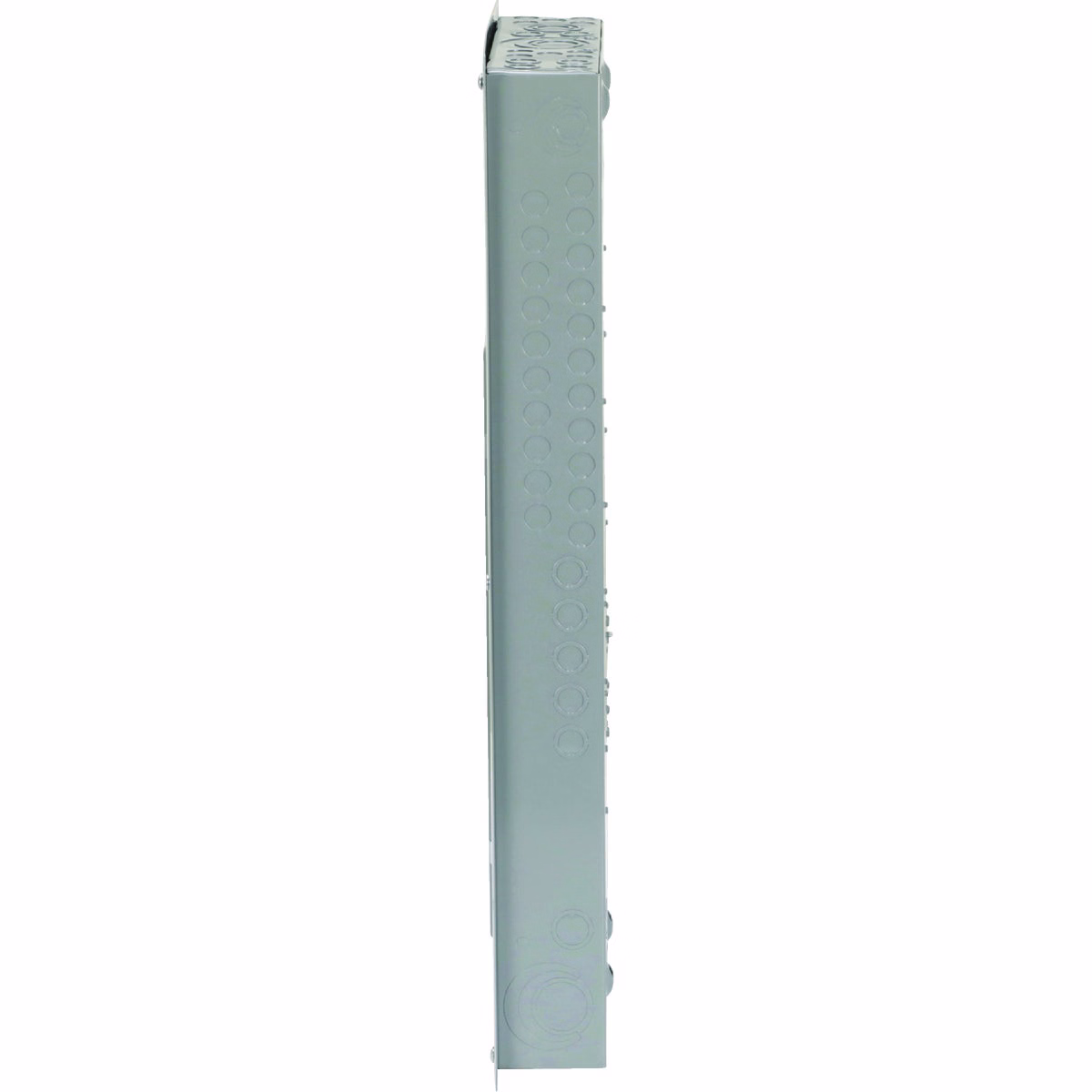

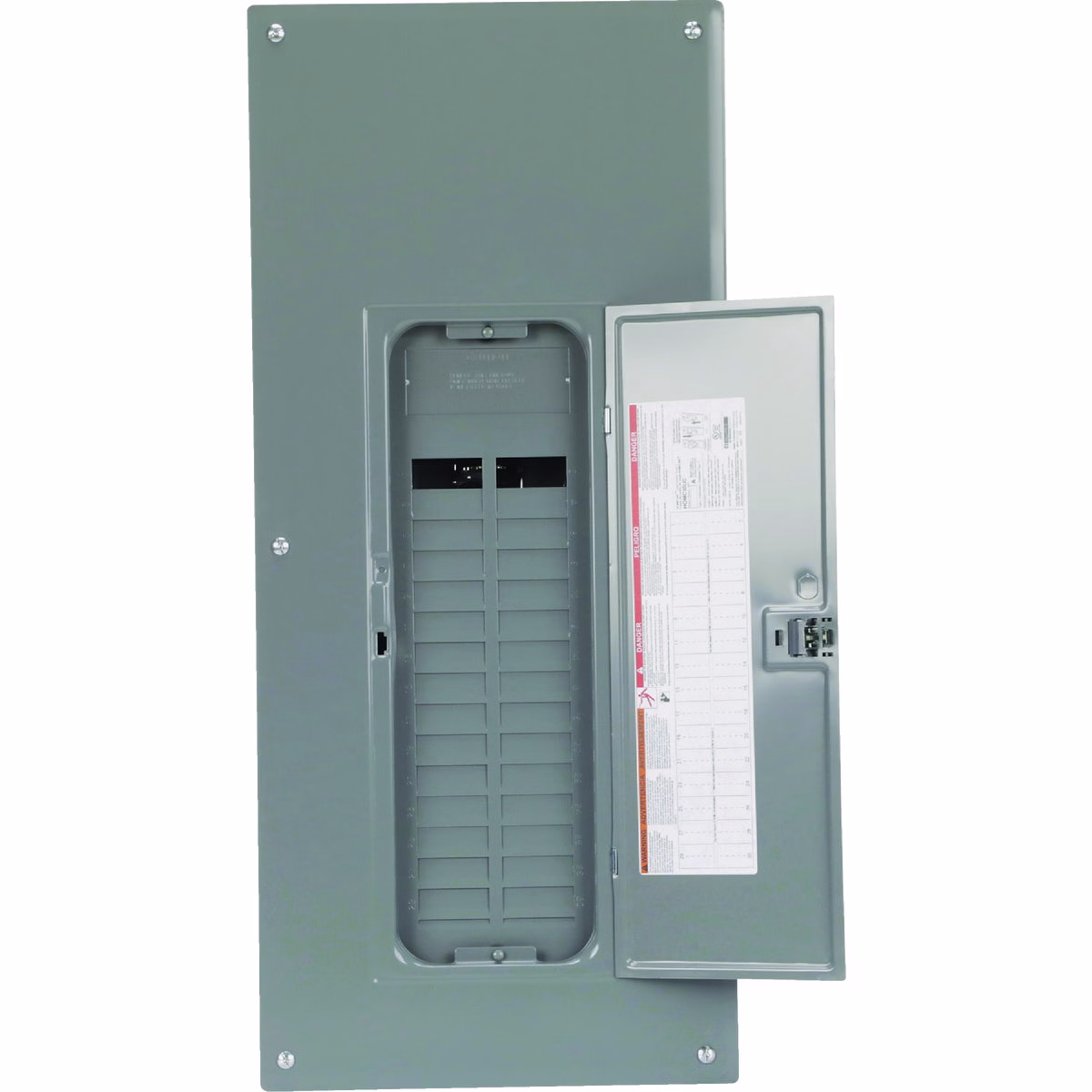

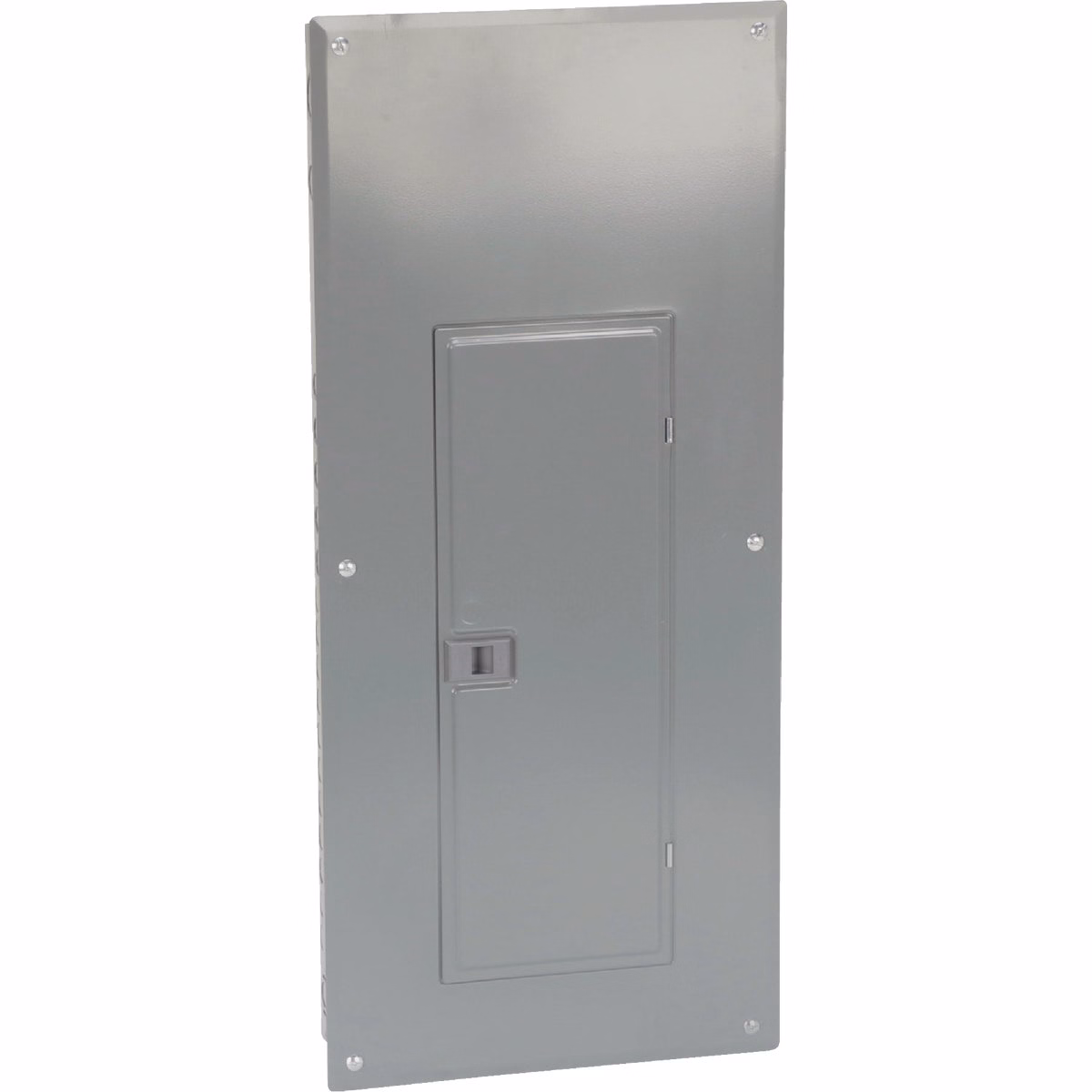

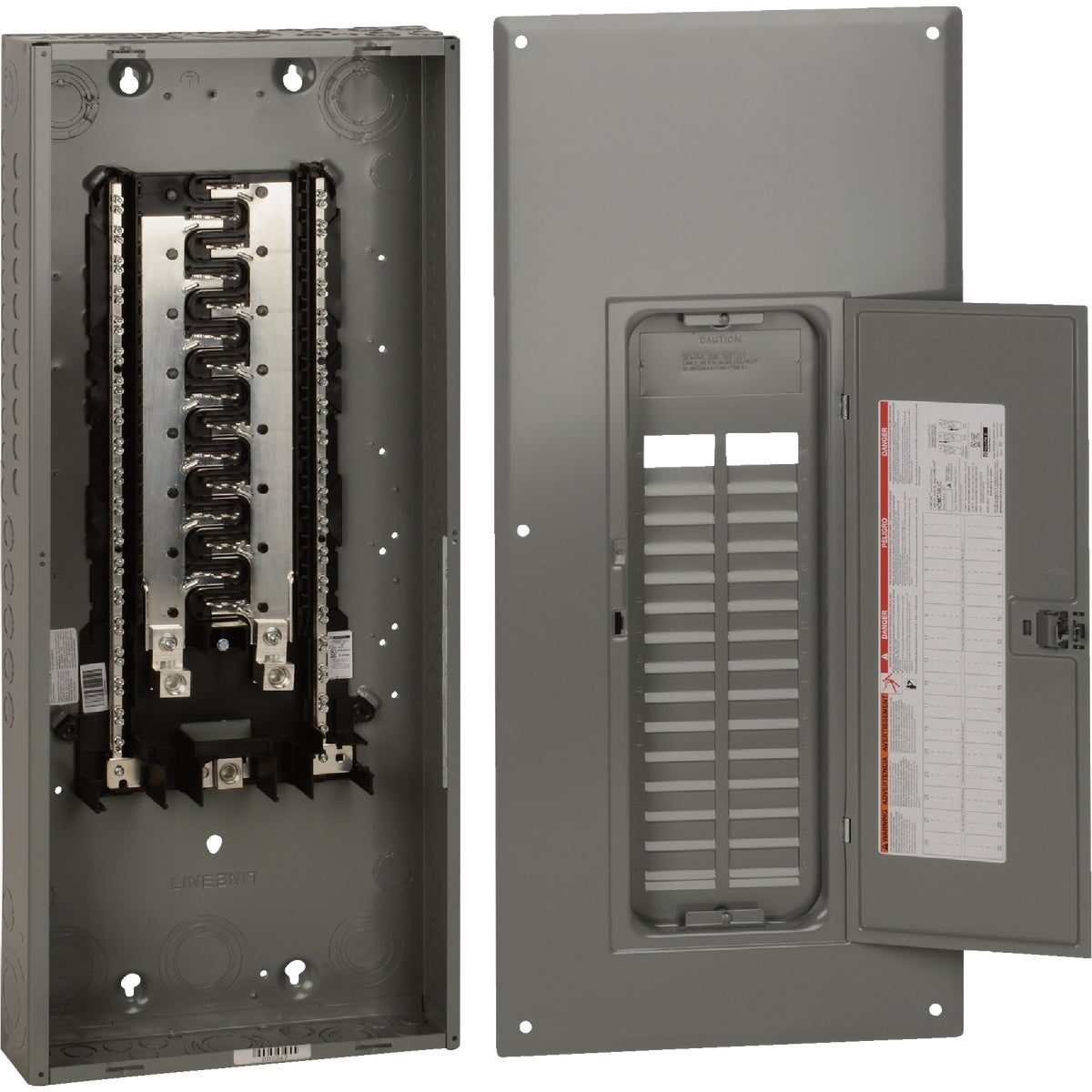

Homeline load center that features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Designed for residential and industrial use to protect electrical systems, equipment, and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Provides a 10 kA breaking capacity. This Plug On Neutral system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. Load center has a grounding bar. 14.25 In. W. x 33.77 In. H. x 3.74 In. D. UL Listed.
| Amperage | 225 |
| Voltage | 120/240 AC |
| Series | Homeline |
| Number Of Spaces | 30 |
| Max Number of Poles | 60 |
| Enclosure Type | Indoor NEMA 1 |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #4 AWG (Aluminum, Copper) |
| Certification | UL Listed |
| Width (In.) | 14.25 |
| Height (In.) | 33.78 |
| Depth (In.) | 3.74 |
| Brand | Square D |
| UPC | 00785901977223 |
| Product type | Main Lug Load Center |
