Description

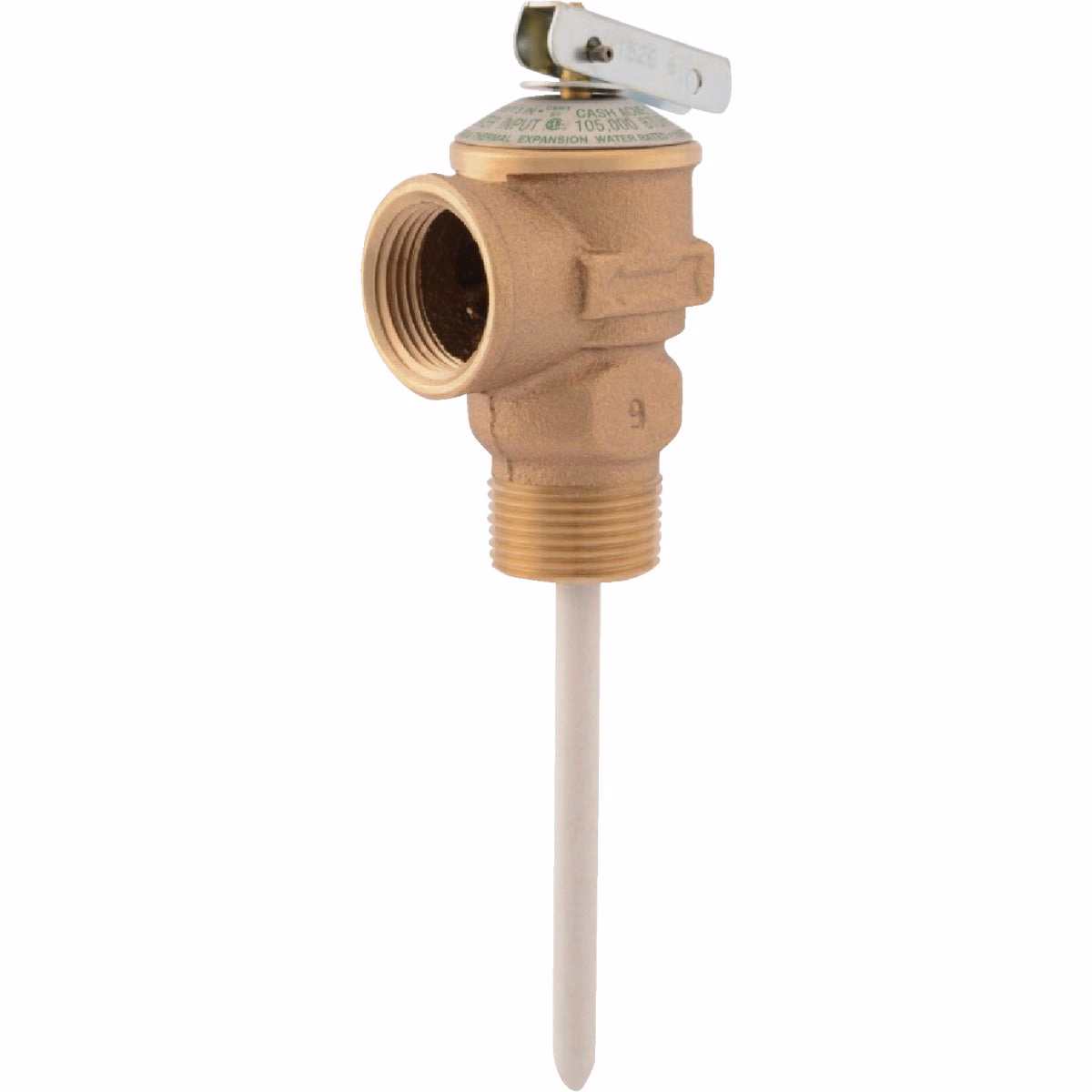

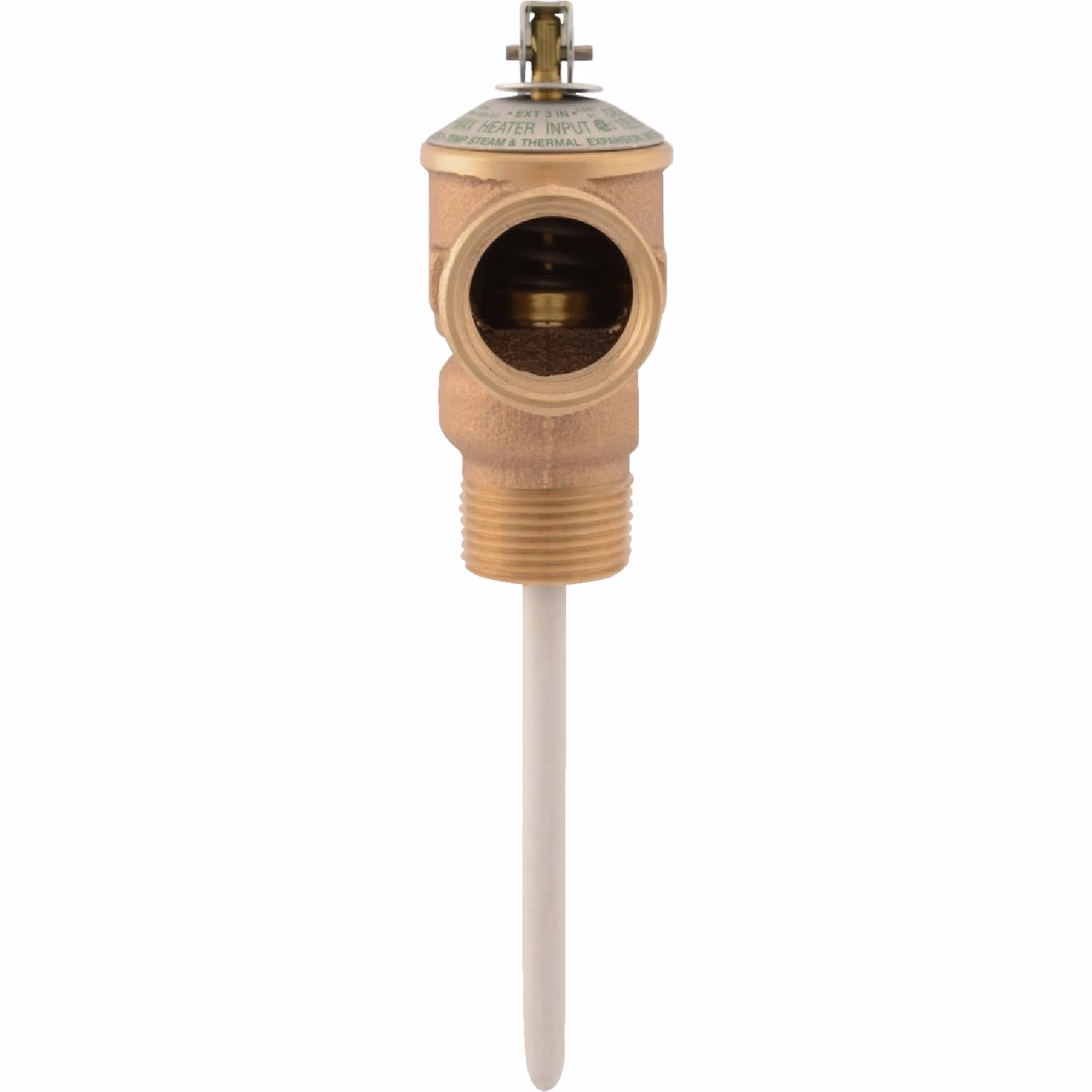

Cash Acme NCLX Combination Temperature and Pressure Relief Valves are designed for the protection of water heaters and storage tanks and are ideal for all domestic water heater applications. The NCLX T&P Relief Valve incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming) and galvanic corrosion. The NCLX features include a cast bronze body, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. The NCLX comes standard with a test lever. The valve is completely automatic and reseats after either temperature or pressure relief. The NCLX is available in male inlets and female outlets with several options in shank and element lengths. Every valve is tested for performance prior to shipping to specify and install with confidence!
| Material | Bronze body |
| Temperature Rating | Up to 210 Deg. F |
| BTU Rating | 500,000 BTU/Hr. at 150 psig |
| Pressure Rating | 150 psi |
| Inlet Size | 3/4 In. |
| Shank Length | 1-3/16 In. |
| Outlet Size | 3/4 In. |
| Brand | CASH ACME |
| UPC | 00697285600478 |
| Product type | Relief Valve |
